- Input voltage range: DC 8V-40V; Output voltage: DC 12V(non-adjustable); Output current: 25A; Output power 300W.
- High conversion efficiency: Synchronization rectification technology-multiple intelligent protection function with high conversion efficiency and stability. The conversion efficiency may reach 95%.
- Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.
- Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.
- Wide application: Large trucks, Golf cart, Club car, taxi radio, emu, car audio, LCD TV, advertising screen, LED strip lights, monitoring system, electronic systems and DIY etc.

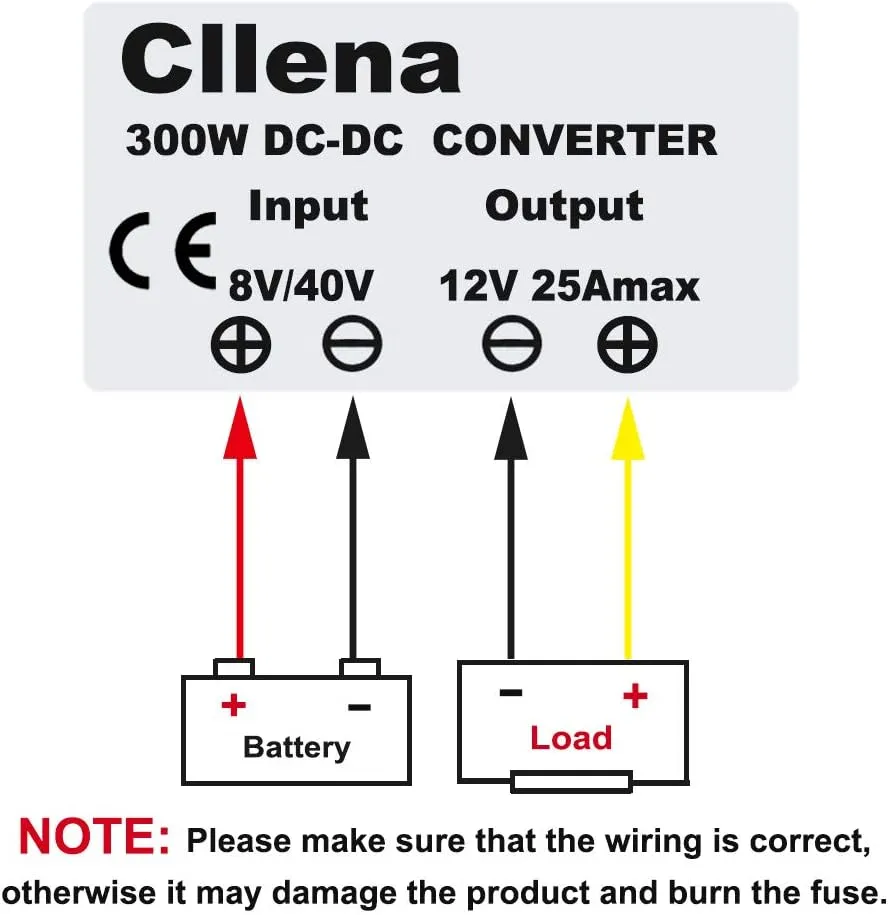

Wiring: OUTPUT to LOAD , OUTPUT- to LOAD-; INPUT to BAT , INPUT- to BAT-
Note:
* Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine.
* Never use for charge. Keep good air convection.
* Never reverse the polarity.
* Use the enough big cable to avoid the voltage drop.
Specifications:
Input Voltage Range: 8V-40V DC
Output Voltage: DC12V 25A
Output Rated Power: 300W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C
Weight: 418g
Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 8V-40V to DC 12V step down/up converter, efficiency up to 95%.

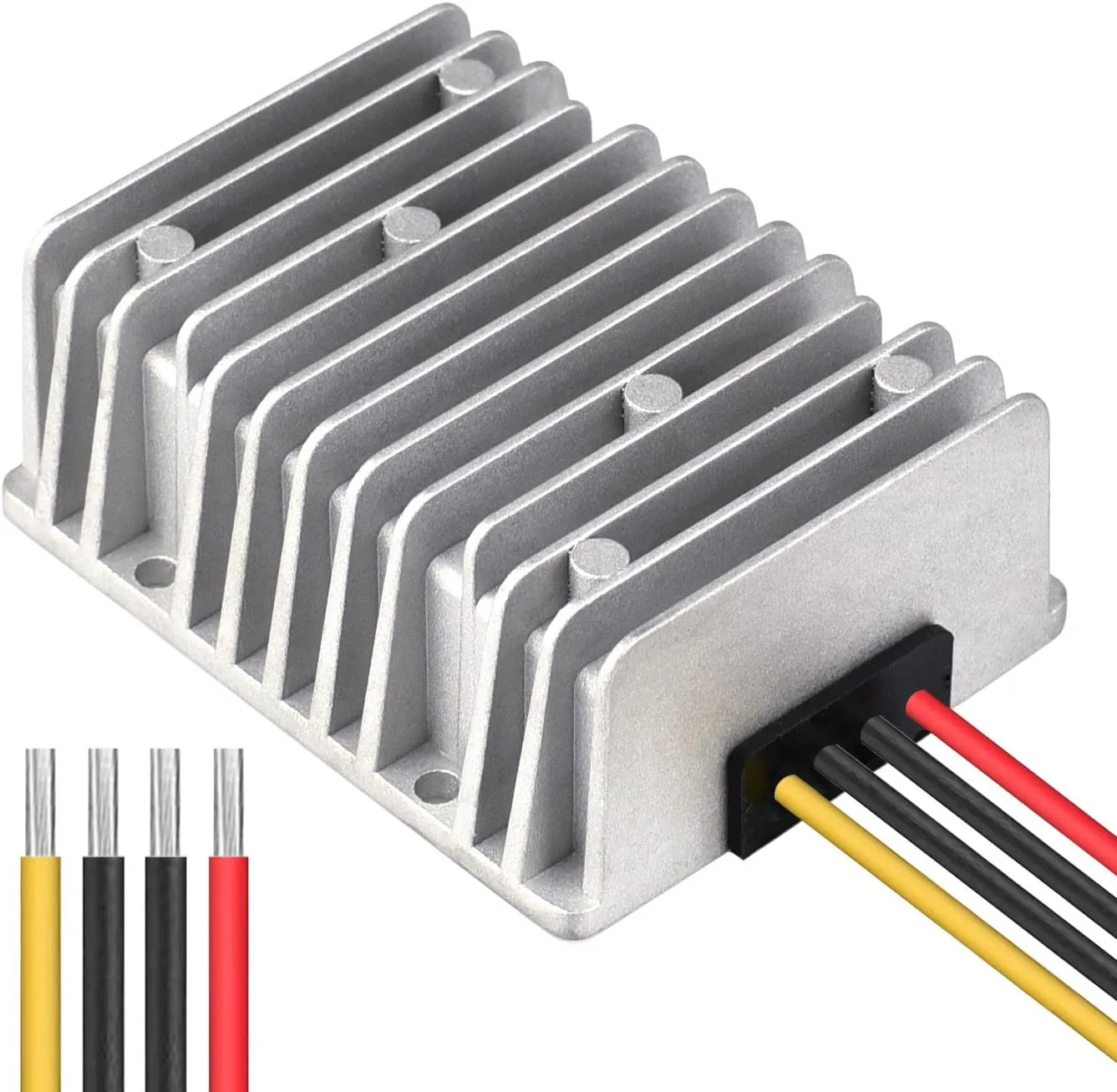

3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.
Package included:

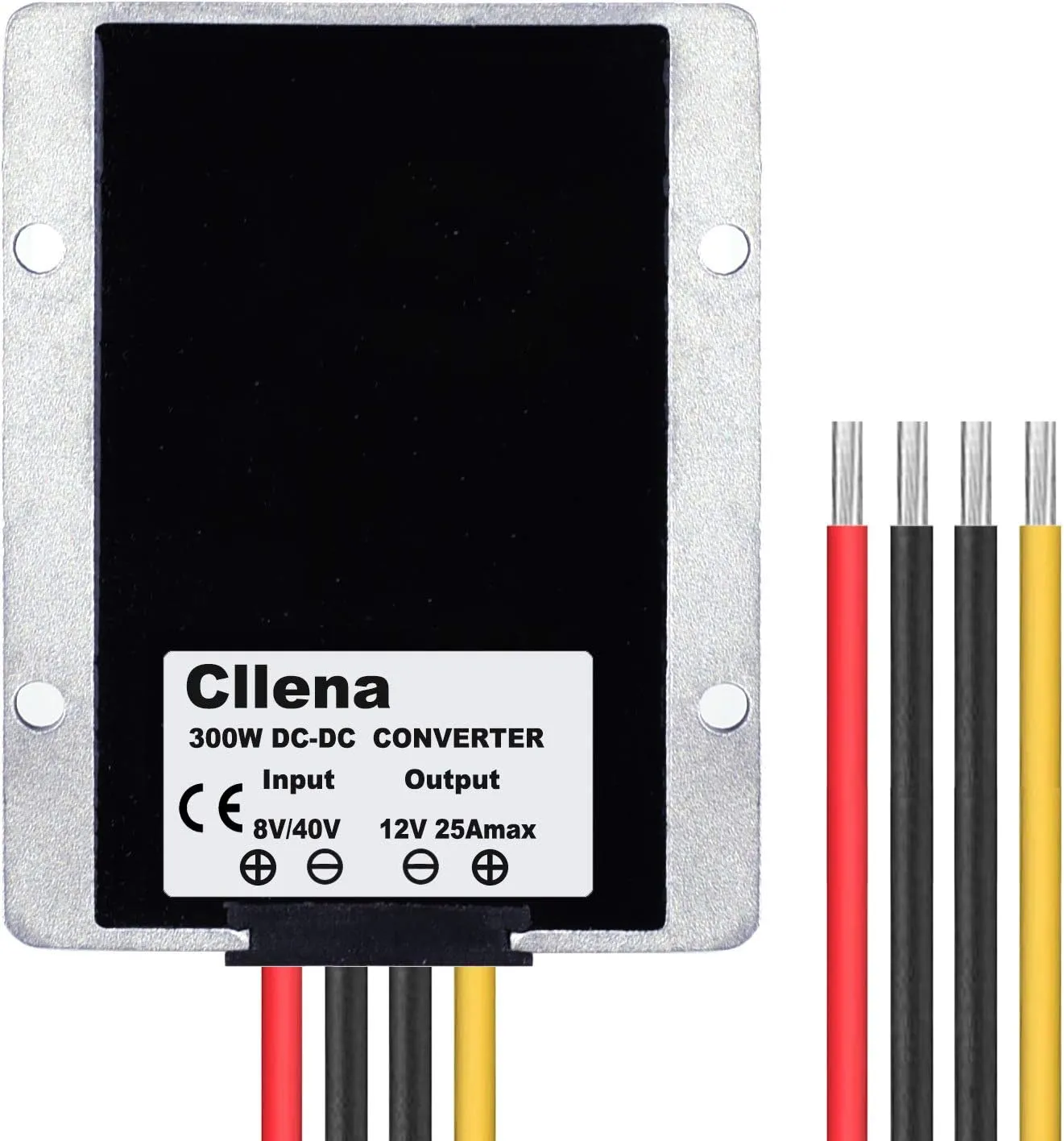

1 x DC 8V/40V to12V 25A Converter
Questions:
How to choose the correct current for loads?
For example, if the max current of your load device is 10A, then choose 10A/0.8=12.5A at least for resistive loads according to international standard.
If the load device is motor or compressor, then you may choose 10A/0.5=20A according to real testing result since the motor and compressor starting current may be 2-3 times than nominal current.
