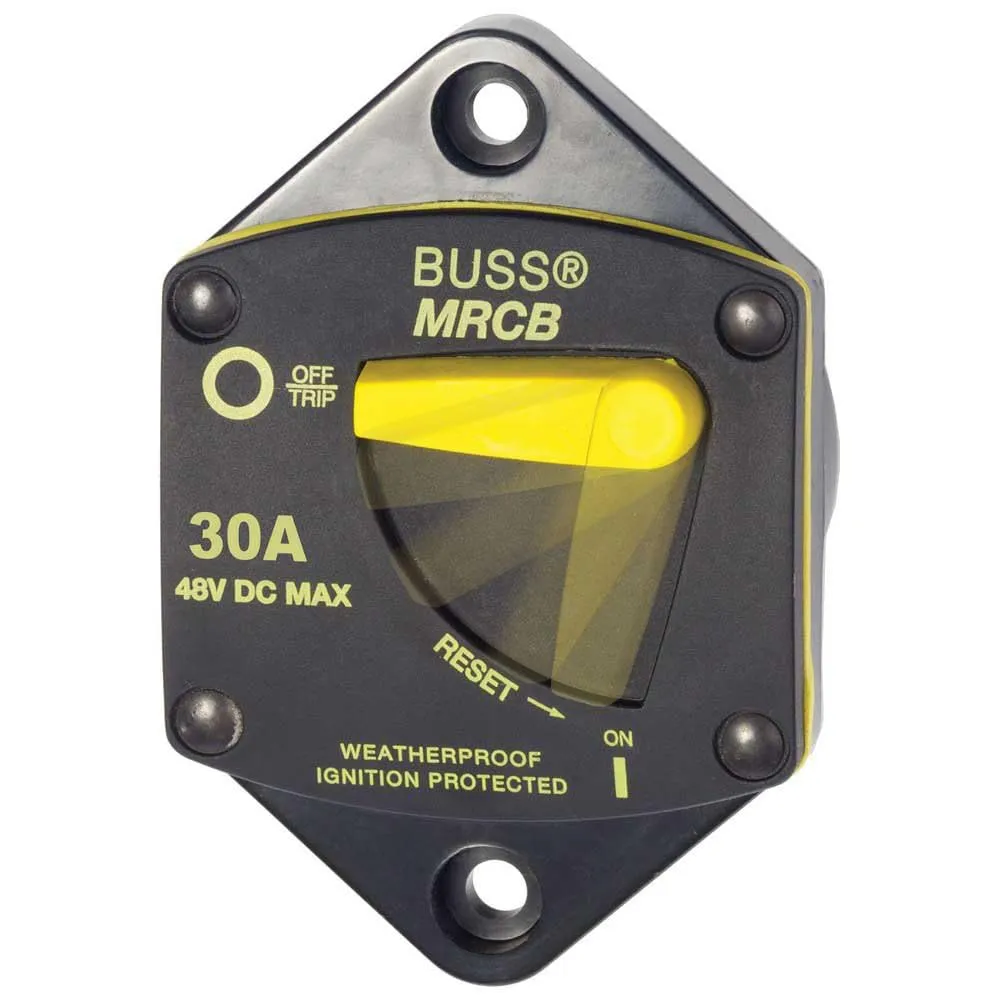

- 30A DC Panel Mount circuit breaker combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
- Rated IP66 Waterproof
- Max voltage: 48V DC, Interrupt capacity: 5000A @12V, 3000A @ 24V, 1500A @ 42V
- Terminal Size: 5/16"-18
The waterproof, weather-resistant Blue Sea Thermal Circuit Breaker combines switching and circuit protection into one unit. Large lever with vertical/horizontal orientation provides clear operation and indication of trip status. "Trip Free" design cannot be held ON during fault current condition. Ignition protected for safe installation aboard gasoline powered boats. Thermally responsive bi-metal blade circuit breaker with manual reset falls into the Type III class. Thermoset polyester case. Recessed mounting holes with a lot of clearance for heavy-gauge wire lugs with 5/16" M8 terminals for high-torque connections (75 in-lb). Mounting holes on surface mount model accept #10 M5 screws. Operates in extreme temperatures (-40ºC to 85ºC). Meets SAE J1171 external ignition protection requirements. CE marked. Waterproof to IP66. Not suitable for direct control of high inrush loads such as motor starting.
Interrupt Rating:
• 5,000A @ 12V DC
• 3,000A @ 24V DC
• 1,500A @ 42V DC
Max Voltage: 48V DC
- Is Discontinued By Manufacturer : No
- Product Dimensions : 2.16 x 4.75 x 7.75 inches; 6.7 ounces
- Department : Men's
- National Stock Number : 5925-01-617-2052
- Date First Available : March 25, 2007
- Manufacturer : Blue Sea Systems
- Country of Origin : Mexico
