Introducing our Smart Pet Tracker – a cleverly designed device shaped like a dog bone, ensuring it becomes your pet's favorite accessory. This small and lightweight tracker features an IP67 waterproof design, equipped with a built-in 500mAh battery that provides an impressive 200-240 hours of usage on a single charge.

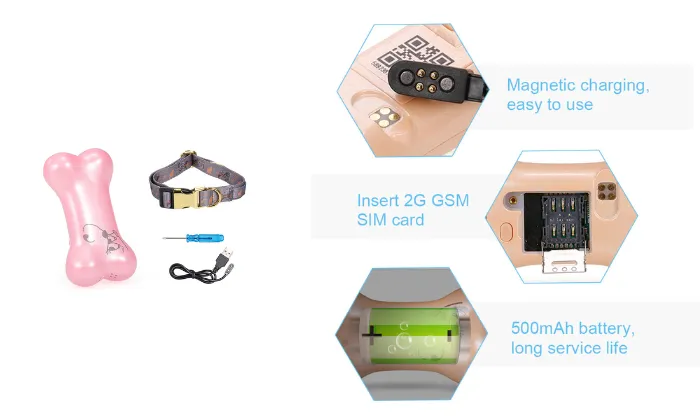

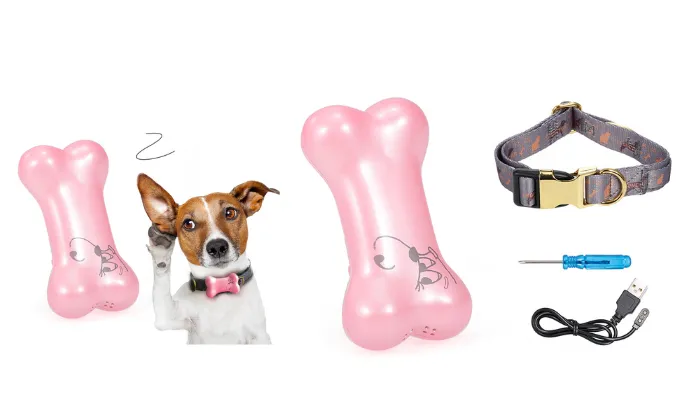

What's in the box?
- 1* Smart pet tracker
- 1* Collar
- 1* USB charging cable
- 1* Screwdriver
- 1* User manual
Product Features:
Multi-Mode GPS Technology: Harness the power of multi-mode GPS, including WIFI, LBS, AGPS, and Beidou positioning, to precisely track your pet's location in real-time. Stay connected and assured of your pet's whereabouts, whether at home or on the go.
Security Zone Settings: Define a secure area around your pet's location and receive immediate notifications if they venture outside of it. The security fence feature adds an extra layer of protection to keep your pets safer.
IP67 Waterproof Design: With an IP67 waterproof certification, this tracker is designed to withstand rain and baths, allowing your pet to enjoy water-related activities without concerns.
Power Saving and Long Service Life: The device incorporates a static sleep mode for enhanced power saving. The built-in 3.7V 500mAh battery, once charged for 2-3 hours, ensures an extended operational time of 200-240 hours. Additionally, one-key call functionality provides convenience while minimizing battery consumption.
Historical Tracking: Access a 3-month track record of your pet's movements, facilitating easy monitoring and locating. The real-time tracking feature ensures you can quickly find your dog whenever needed.
Product Specifications:
- Main material: PC metal buckle woven fabric
- Waterproof rank: IP67
- Battery: 3.7V 500mAh
- Charging time: 2-3h
- Working time: 200-240h
- Button: One button(power/SOS button)
- Screen: No
- 10 minutes upload the data once: 119 (Unit: Hour)/Stand-by
- 60 minutes upload the data once: 152 (Unit: Hour)/Stand-by
- GPS data does not work: 250 (Unit: Hour)/Stand-by
- SIM card slot: 1 pcs
- G-sensor: support
- I/O port: Contact type charging interface

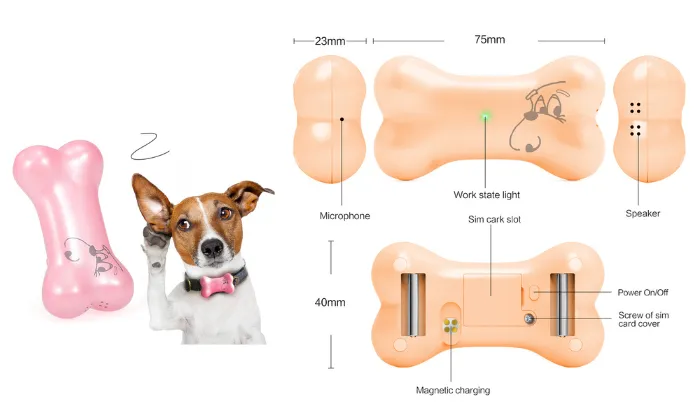

- Tracker size: 7.5*4*2.3cm
- Tracker weight: 39g without package
- Pet collar weight: 82g
Hardware parts
- CPU: MTK MT2503D
- GPRS: Class12
- GPS signal: L1,1575.42MHz C/A
- GPS channel number: 22 channels
- GPS chip receive sensitivity: Tracking sensitivity:-165dBm,capture sensitivity: -148dBm
- GPS location accuracy: 5～15M
- LBS location accuracy: 100-1000M
- Minimum standby current: Less than 0.5 mA
- Average standby current: Less than 2.5 mA
- Average working current: Around 55mA
- Working temperature: -20～70℃
- Working humidity: 5% to 95% non-congealable
- GPS antenna: Built-in high sensitivity ceramic antenna
- GSM antenna: FPC antenna; GSM850/900/1800/1900MHZ
- GSM antenna: Built-in four frequency method of antenna
- BT: BT 3.0(Normal closed)
- G-sensor: Support
- MIC: Support
Package Information:
- Package size: 12*12*7.5cm
- Package weight: 307g
